Data-rich alarms. Lightning-fast commands.
Button immediately notifies an alarm monitoring company about the intrusion, gas leak, or fire. Moreover, it can request medical help and inform relatives about a sudden health deterioration in just one click. In the panic mode, the device supports 4 types of alarms. They define the event’s code sent to an alarm monitoring company and the notification text received by users. An accurate alarm response is guaranteed. Moreover, Button can manage smart home appliances by activating scenarios with a single or double clicks.
Without false alarms

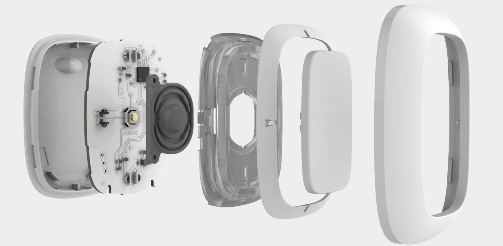

he body of the Ajax Button is designed to prevent false alarm even if you sit or lay on it. To further prevent false alarms you can set Button to react only on double-click or long-press.
Guarantees alarm delivery

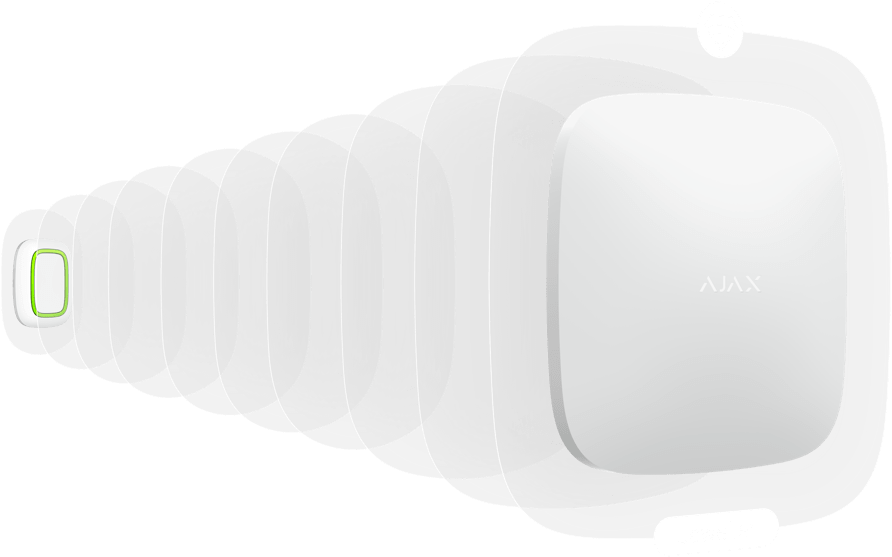

Ajax panic button communicates with a hub using Jeweller radio protocol on a distance of up to 1300 m. Once it delivers an alarm, you’ll see a green blink. Jeweller encrypts all of the transmitted data. In case of signal interference or radio jamming, Ajax system switches the radio frequency and notifies you as well as the security company about the situation.
Signal range up to 1300 m
Command delivery confirmation
Encryption with a modified AES algorithm
Frequency hopping
Signal range up to 1300 m
Command delivery confirmation
Encryption with a modified AES algorithm
Frequency hopping
Tech specs
| Classification | Addressed Radio Panic Button |
|---|---|
| Compatibility | Operates with all Ajax hubs, and range extenders |
| False alarm prevention | Yes (in the Panic mode) |
| Number of buttons | 1 |
| Alarm transmission | Not longer than 0,15 sec Active from the first click (no need to wake it up) |
| Adjustable alarm types | Intrusion Fire Medical help Panic button Gas leak |
| Jeweller radio technology | Communication range with a hub — up to 1300 m in an open area Two-way communication channel Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Frequency hopping |
| Power supply | Battery: CR2032 battery, 3 V |
| Battery life | Up to 5 years |
| Operating temperature range | From -10°C to +40°C |
| Permissible humidity | Up to 75% |
| Protection class | IP55 |
| Size | 47 × 35 × 13 mm |
| Weight | 16 g |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Complete set | Panic button Pre-installed CR2032 battery Double-sided tape Quick Start Guide |
