DualCurtain Outdoor

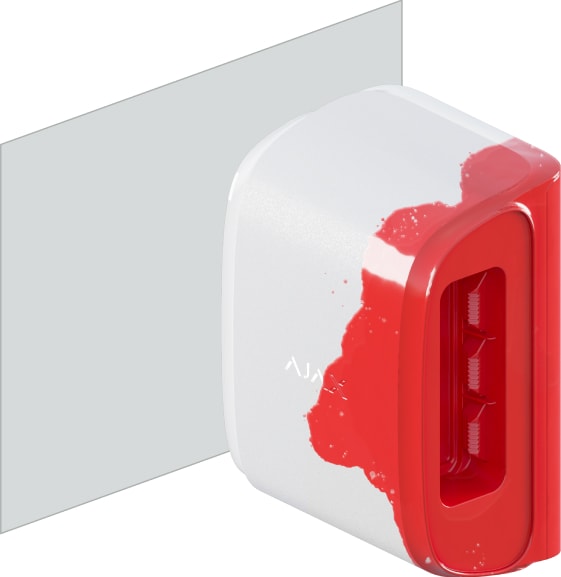

Resistant to attacks DualCurtain Outdoor can not be unnoticeably blinded or disabled even if Ajax is disarmed. Detector’s optical systems are reinforced with advanced masking sensors that respond to obstacles, covering and painting the lenses. The tamper will not allow to unnoticeably remove the device from the mount. And even if the detector is instantly destroyed, it will take the hub less than a minute to detect the loss of communication and inform a central monitoring station and users about the problem. Anti-masking Tamper Frequent pings by a hub
Outstanding autonomy Due to its low energy consumption, DualCurtain Outdoor operates for years from pre-installed batteries. A monitoring station and users will be warned in advance about the need for the device maintenance. Reactions to threats Planned actions Reactions to security mode change
Tech specs
Classification Electro-optical radio channel security detector
Detector type Wireless
Installation method Indoors / outdoors
Compatibility Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Sensing element 4 × PIR sensor
Motion detection distance From 4 to 15 m (depending on settings) for each optical system
Protection against false alarms Available
Alarm signal delivery time 0.15 s
Detection angle Horizontal — 4.5° Vertical — depending on settings
Time for motion detection From 0.3 to 2 m/s
Sensitivity Adjustable, 3 levels

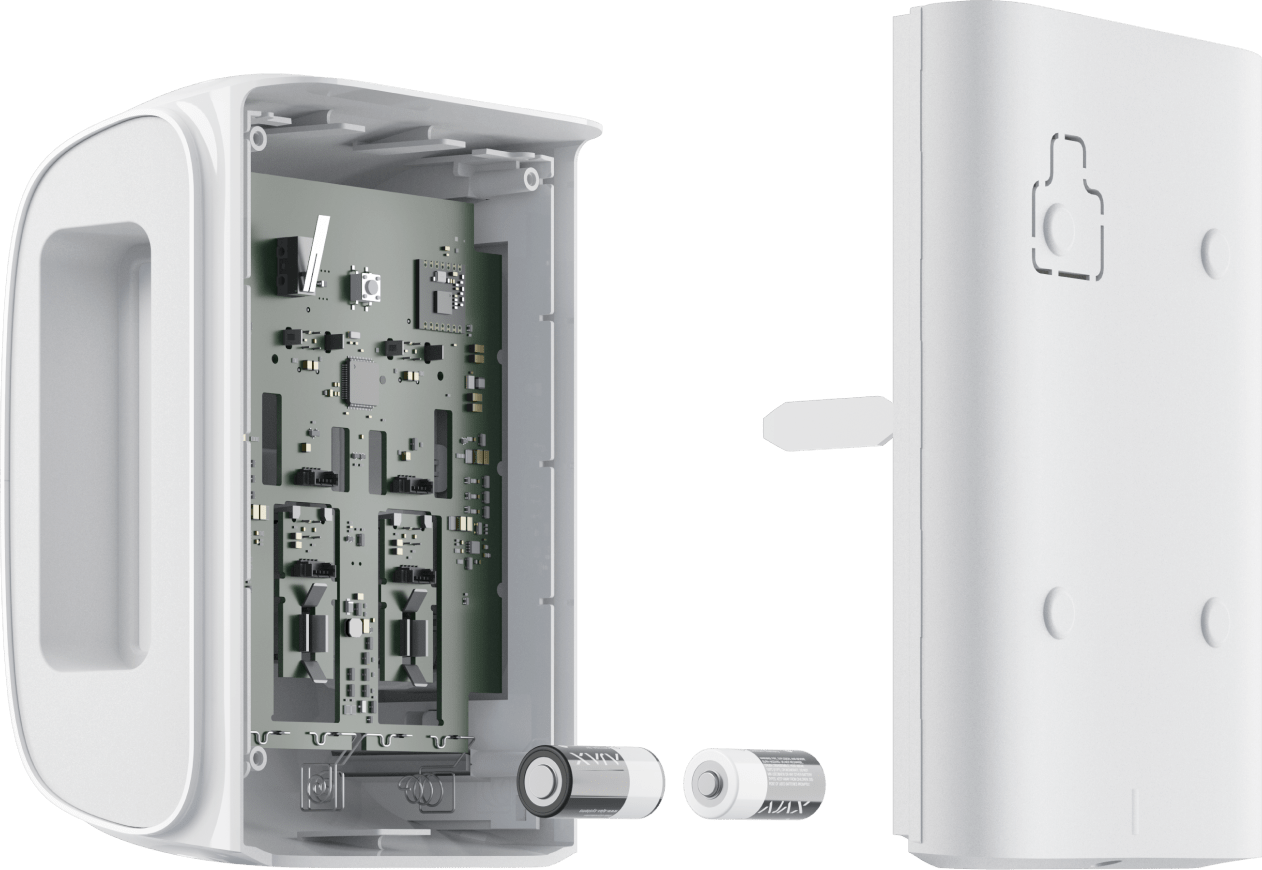

Power supply 2 × CR123А batteries, 3 V
Battery life Up to 4 years
Jeweller radio technology Communication range a control panel — up to 1,700 m in an open space Two-way communication between devices Operating frequencies — 868.0–868.6 MHz1 Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector ping interval — 12−300 s Frequency hopping
Operating temperature range From -25°C to +40°C
Permissible humidity Up to 95%
Protection class IP54
Anti-sabotage Protection against forgery Jamming detection Tamper-resistant
Dimensions 174 × 123 × 88 mm
Weight 615 g
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set DualCurtain Outdoor motion detector SmartBracket mounting panel 2 × CR123A batteries (pre-installed) Installation kit User guide
