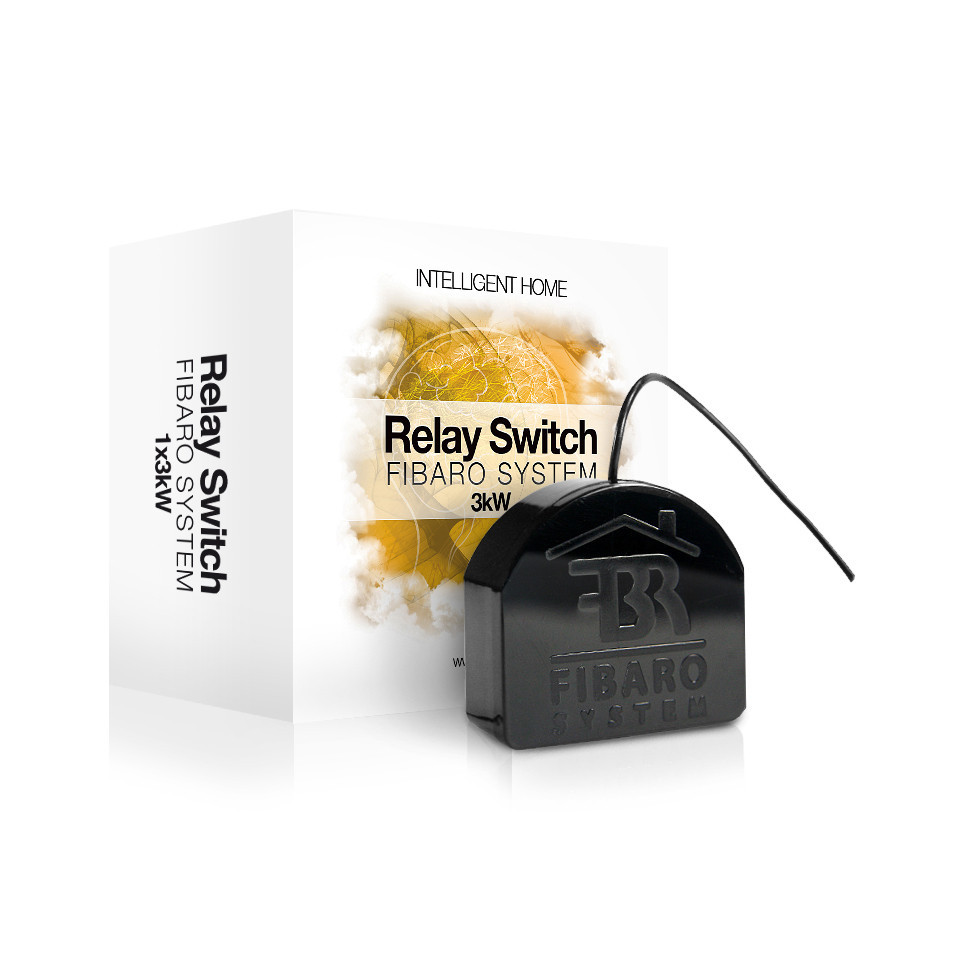

FIBARO Relay Switch 1x2.5kW

Product Overview

Radio controlled FIBARO Relay Switch (On/Off) is designed to be installed in standard back boxes or anywhere else where it's necessary to operate an electric device up to 3kW.

The FIBARO On/Off Relay Switch can control a connected device either wirelessly or through the switch connected to the module.

Product Highlights

  • Can be controlled and associated with other FIBARO devices and Z-Wave controllers
  • The smallest device of its type in the world.

Technical Data

  • Power Source: 110V – 230V +/-10% 50/60Hz,
  • Power Source: 24 – 60V DC ±10%,
  • Max. AC output: 16A / 230V 50/60Hz,
  • Max. DC output: 16A / 30V,
  • Max. power output (resistive loads only) 2.5 kW (in case of loads other than resistive it may be necessary to connect lower output in order to protect the Switch from damage),
  • Conforms to UE requlations:EN55022 (radio wave interference), EN61000-6 (safety of use),
  • Overheating protection: safety off at 105°C,
  • Ambient temperature: 10°C – 40°C,
  • To be mounted in standard wall switch boxes Ø ≥50mm,
  • Radio protocol: Z-Wave
  • Antenna range: up to ca. 50 meters outdoor, or up to 30 meters inside (depends on building structure),
  • Outside dimmensions (L x W x H) 42mm x 36mm x 15mm.

Use Case

1. There is no need to wonder whether you forgot to turn TV or lamp in the bedroom off. With a special scene, with only one button you can turn all appliances and lights off when leaving home. It is a simple way to reduce unnecessary energy loss, bring your bills down and take care of the environment.

2. You overslept again and did not have enough time to drink your morning coffee? With FIBARO you can easily design your perfect "wake up" scene. In the morning system raises the temperature in your room and opens the blinds. Coffee machine is switched on automatically when the motion is detected on the way to the bathroom. How will you make your morning brighter?
