Hub Plus Manages the security system with visual alarm verifications
Transmits photos from MotionCam detectors
Automatically notifies the alarm response company
Full system control in one app
Communicates via 3 independent channels
Always in touch Hub 2 central panel uses Ethernet or one of the 2 SIM cards to guarantee the delivery of the alarms and photos from the secured objects. The channels work in parallel and back each other up in case of emergency. Compression and transmission protocols guarantee lightning-fast delivery of the photo series even with weak Internet connectivity. Unlike with the video camera streams, with Ajax, you can evaluate the situation on the secured objects at the 0.5 kB/s Internet speed. Uses 3 independent communication channels Delivers alarms in 0.15 seconds Transmits photo confirmations even on 2G
Safe home and office automation Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost. Reactions to threats Planned actions Reactions to security mode change
Seamless setup It takes minutes to install Hub 2. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won’t require any additional tuning. Hub 2 begins to operate once online.
Tech specs
Classification The radio channel central unit with the support of visual alarm verification detectors
Installation Indoors
Connected devices 100
Video surveillance Up to 25 cameras or DVRs
Users 50
Rooms 50
Security Groups 9
MotionCam detectors support +
Communication channels Ethernet Two 2G SIM-cards
Alarm signal Delivery time: 0.15 s Types of notifications: SMS message, call, push
Switching between SIM cards 4 minutes

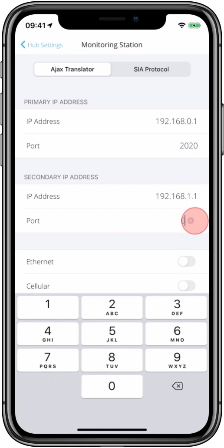

CMS connectivity CMS connectivity: Contact ID, SIA Photo verification integrated in Manitou, SBN, WBB, V1/F1, Kronos, eLipse, Sentinel and Horus
The speed of alarm delivery to the CMS Instant
Operating system OS Malevich
Power supply 110-240 V with pre-installed battery 12 V with alternative 12V PSU power supply 6 V with alternative 6V PSU power supply Energy consumption from the 110-240 V grid — 10 W
Built-in back-up battery Li-Ion 2 А·h Ensures up to 16 hours of operation when using SIM card only
Jeweller radio technology Communication range with detectors — up to 2,000 m in an open space Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Frequency hopping
Wings radio technology Transmission of visual confirmations Delivery verification of packages
Operating temperature range From -10°С to +40°С
Size 163 × 163 × 36 mm
Weight 362 g
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set Ajax Hub Plus intelligent central unit SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM cards (depending on region) User’s guide
