Hub Plus
Uses Wi-Fi, Ethernet, WCDMA and GSM to send alarms to the Central Monitoring Station and the system’s owner
Sends a notification in case of electrical power loss and operates for up to 16 hours from battery backup
Checks the functionality of detectors at least every 12 seconds

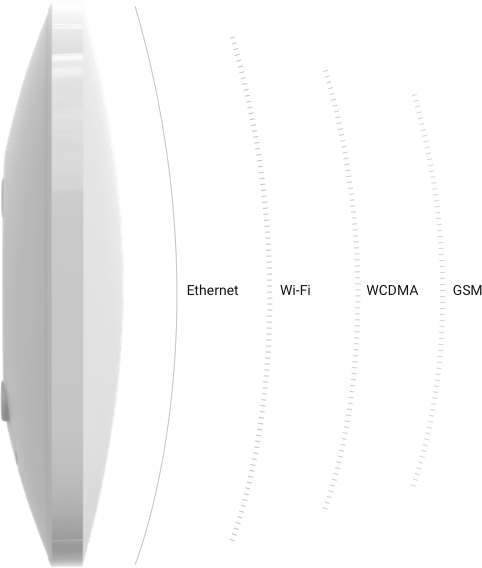

Uses all possible alarm transmission methods The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station. Alarms via calls, SMS and push notifications Synchronized operation of all communication channels Direct connection with central monitoring stations
Increases stability by 4 times The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically
Improved reliability The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.
Safe home and office automation Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost. Reactions to threats Planned actions Reactions to security mode change

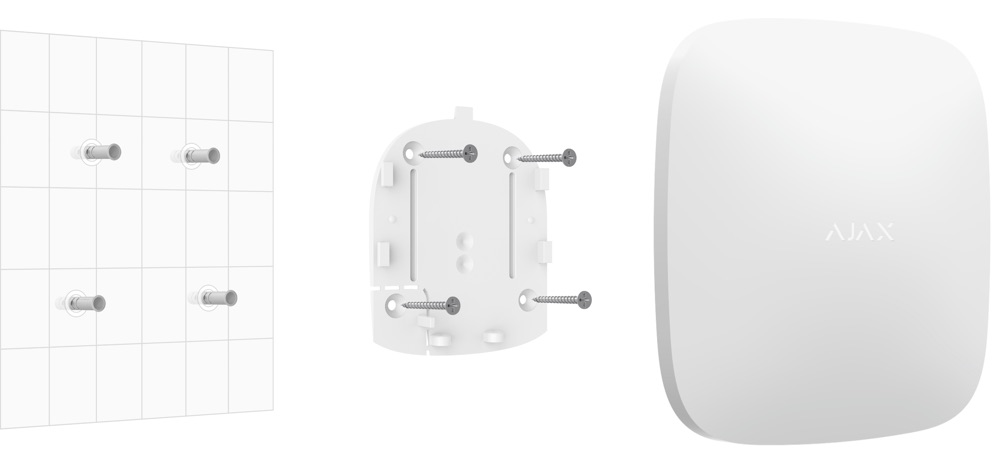

Installation and set up Ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount.
Mounted in 5 minutes
Placed in any room within a Wi-Fi signal range
Mobile application for configuring and testing
Tech specs
Classification Intelligent central unit of the security system with Wi-Fi and Ethernet modules, and dual SIM
Installation Indoors
Connected devices 150
Video surveillance Up to 50 cameras or DVRs
Users 99
Rooms 50
Security Groups 25
Connected ReX 5
Scenarios 64
MotionCam detectors support No
Mobile apps iOS 11.0 and later Android 4.4 and later
Communication channels 2 SIM cards - 2G (900/1800 MHz) - 3G (WCDMA 900/2100 (B8/B1)) - Wi-Fi 2.4 GHz (802.11 b/g/n) - Ethernet
Alarm signal Delivery time: 0.15 s Types of notifications: SMS message, call, push
Switching between 2G and 3G Instant
Switching between SIM cards 4 minutes
Communication with Central Monitoring Station Contact ID, SIA
Processor ARM
Operating system OS Malevich
Power supply 110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX Built-in back-up battery: Li-Ion 2 А·h Up to 16 hours of battery life when Ethernet and Wi-Fi connections are disabled Energy consumption from the grid — 10 W
Jeweller radio technology Communication range with detectors — up to 2000 m in an open area Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Detector polling period — 12–300 seconds Frequency hopping
Operating temperature range From -10°С to +40°С
Anti-sabotage Protection against fraud Jamming detection Tamper-resistant
Remote set up +
Weight 350 g
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set Ajax Hub Plus intelligent central unit SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM cards (depending on region) User’s guide
