StreetSiren
Indicates armed/disarmed state by means of a built-in LED
An external LED is connected to the siren, if necessary
Customizable sound level and alarm length during detector activation
Principle of operation The device notifies of detector activation with an audible alarm and LED. Sound level and alarm length are set in the mobile application. Feature The device has IP54 dust and moisture protection. 12 V DC external power supply can be connected, if necessary. The built-in accelerometer will raise the alarm if an attempt is made to remove the siren.

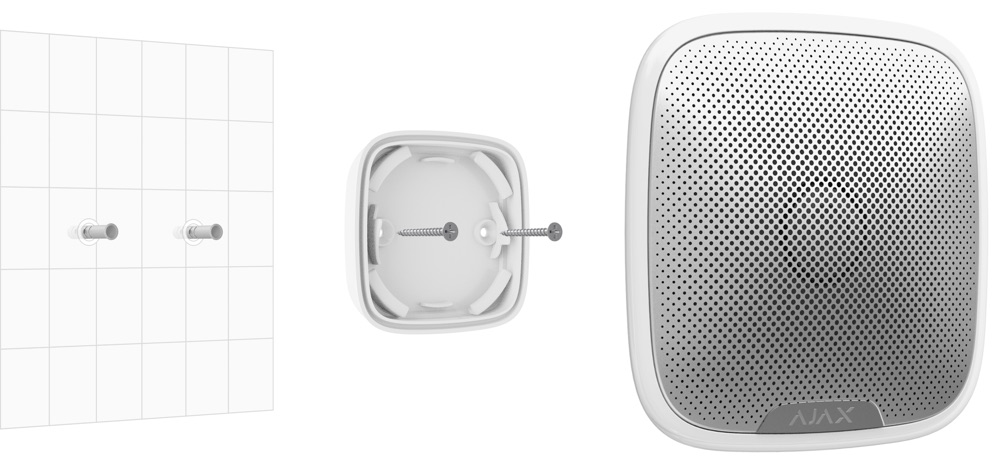

Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the siren. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
Classification Light and sound radio channel security sounder
Type of detector Wireless
Installation method Indoors
Compatibility Operates with all Ajax hubs, and range extenders
Type of notification SSound/lightound
Sound volume level Adjustable, 85−113 dB at a distance of 1 m
Alarm length Adjustable, 3−180 s
Indication of armed/disarmed status Yes
Alarm signal delivery time 0.15 s
Jeweller radio technology Communication range with central unit — up to 1,500 m in an open space Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Device polling period — 12 – 300 s
Power supply
Battery life Up to 5 years
Temperature sensor Available
Operating temperature range From -25°С to +50°С
Permissible humidity Up to 95%
Protection class of body IP54
Anti-sabotage Protection against fraud Jamming detection Tamper-resistant
Remote setting and testing +
Dimensions 200 × 200 × 51 mm
Weight 528 g
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set StreetSiren siren SmartBracket mounting panel 4 batteries CR123A (pre-installed) Installation set User’s guide
