Compatibility
The power supply unit is compatible with Hub, Hub Plus, and ReX. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.
Installation

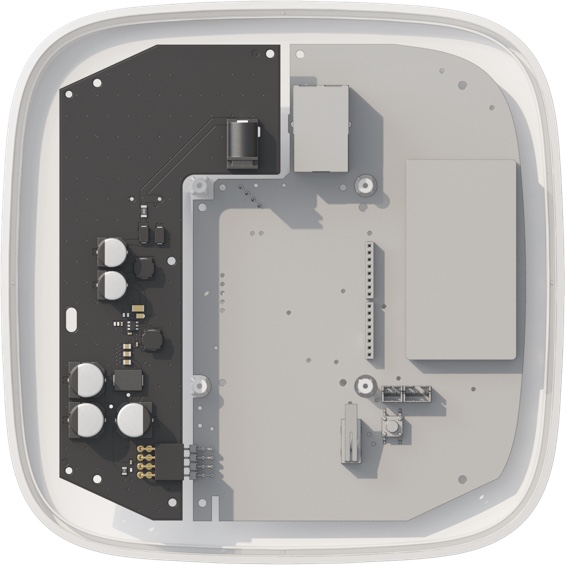

12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
Tech specs
| Compatibility | Hub, Hub Plus, ReX |
|---|---|
| Input voltage | 8-20 V DC |
| Output voltage | 4.65 V ± 3% |
| Switch-on voltage | 8 V ± 2.5% |
| Switch-off voltage | 6.9-7.5 V (depending on load) |
| Input current | <1 А |
| Output current | 1,5 А |
| Connection | Socket: 6,5 × 2 mm plug: 5,5 × 2,1 mm (power jack) |
| Dimensions | 138 × 64 × 13 mm |
| Weight | 30 g |
| Complete set | 12V PSU for Hub/Hub Plus/ReX Terminal adapter Quick guide |
