Principle of operation
The device detects smoke by means of a camera with photoelectric sensor. If no smoke is emitted, the additional detector registers temperature increase in the room.
Feature
It can operate independently from the hub, emitting a fire alarm by means of a built-in siren. Several detectors indicate an alarm simultaneously.
Installation and set up

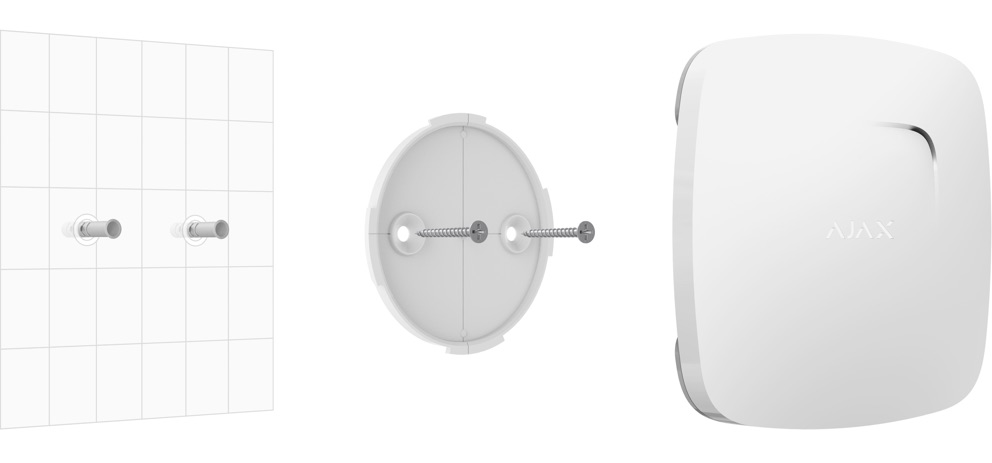

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
| Classification | Radio channel smoke detector with temperature sensor and built-in siren |
|---|---|
| Type of detector | Wireless |
| Installation | Indoors |
| Compatibility | Operates independently or with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Sensing element | Photoelectric and temperature sensors |
| Activation threshold | +59°С ±2°С |
| Type of notification | Sound/light |
| Volume of built-in siren | 85 dB |
| Alarm signal delivery time | Delivery time: 0.15 s |
| False alarm filter | + |
| Interconnected alarms | + |
| Power supply | Battery: Two CR2 batteries, 3 V Backup battery: CR2032 |
| Battery life | Up to 4 years |
| Jeweller radio technology | Communication range with central unit — up to 1,300 m in an open space Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s |
| Additional temperature sensor | Available |
| Operating temperature range | From 0°С to +65°С |
| Permissible humidity | Up to 80% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Remote setting and testing | + |
| Dimensions | 132 × 132 × 31 mm |
| Weight | 220 g |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Complete set | FireProtect detector SmartBracket mounting panel 2 x CR2 batteries (pre-installed) 1 x backup battery CR2032 (pre-installed) Installation set User’s guide |
