Principle of operation
The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub.
Feature
Alarm button is available. It notifies of each attempt to guess the password and blocks automatically if the permissible number of entries is exceeded.
Installation and set up

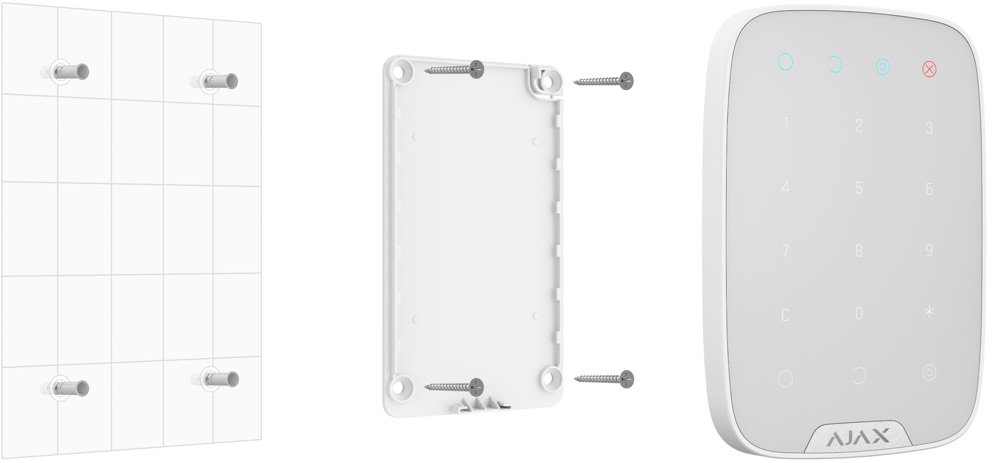

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the keypad. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
| Classification | Radio channel touch keypad |
|---|---|
| Type of detector | Wireless, touch |
| Installation | Indoors |
| Compatibility | Operates with all Ajax hubs, and range extender |
| Number of buttons | 15 |
| Duress code | Yes |
| User Passcode | Yes |
| Protection against passcode guessing | Yes |
| Arming/disarming indication | Yes |
| Power supply | Battery: 4 × ААA batteries, 3 V (batteries are installed in pairs) |
| Battery life | Up to 2 years |
| Jeweller radio technology | Communication range with central unit — up to 1,700 m in an open space Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Keypad scanning period — 12 – 300 s |
| temperature sensor | Available |
| Operating temperature range | From -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Remote setting and testing | + |
| Dimensions | 150 × 103 × 14 mm |
| Weight | 197 g |
| Warranty | KeyPad touch keyboard SmartBracket mounting panel 4 ААА batteries (pre-installed) Installation set User’s guide |
| Complete set | LeaksProtect leak detector Two AAA batteries (pre-installed) User’s guide |
