Principle of operation
The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.
Features
The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.
Installation and set up

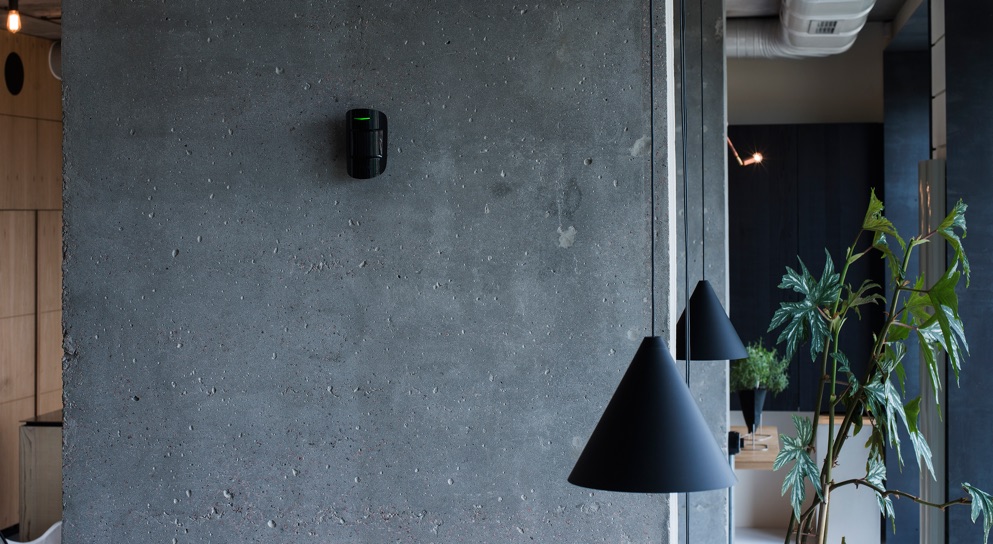

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
| Classification | Electro-optical radio channel security detector |
|---|---|
| Detector type | Wireless |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Sensing element | PIR sensor |
| Alarm signal delivery time | 0.15 s |
| Motion detection distance | Up to 12 m |
| Detection angles | Horizontal — 88.5° Vertical — 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 m |
| Pet immunity | Weight — up to 20 kg Height — up to 50 cm |
| Power supply | Batteries: CR123A (×2), 3 V |
| Battery life | Up to 5 years |
| Jeweller radio technology | Communication range with central unit — up to 1,700 m in an open space Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Device polling period — 12 – 300 s |
| Temperature sensor | Available |
| Operating temperature range | From 0°C to +40°C |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming notification Tamper-resistant |
| Remote setting and testing | + |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 86 g |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Complete set | MotionCam motion detector SmartBracket mounting panel CR123A batteries (pre-installed) Installation kit User’s guide |
