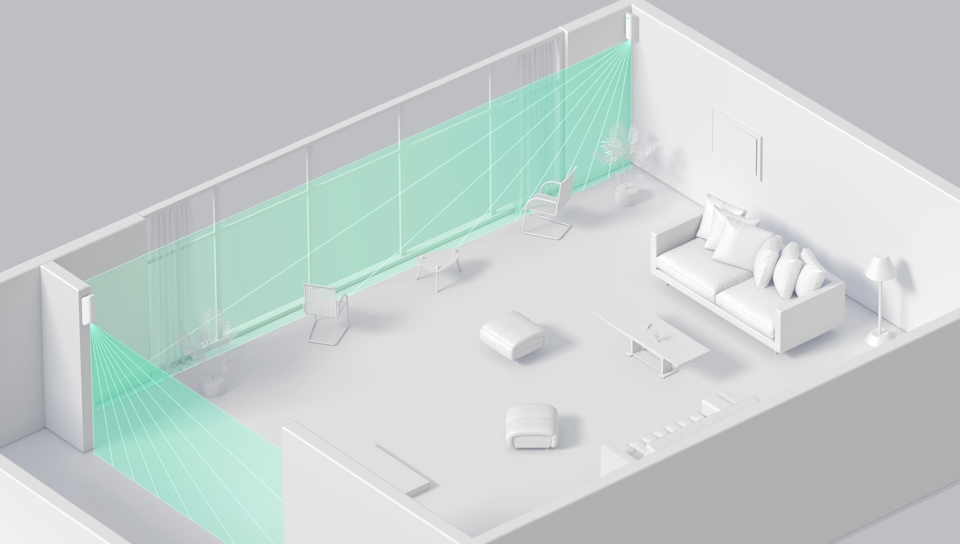

At home
With the MotionProtect Curtain detectors, you can secure the perimeter of your house and freely move indoors. If a stranger breaks in, the system will raise an alarm and call the security company.

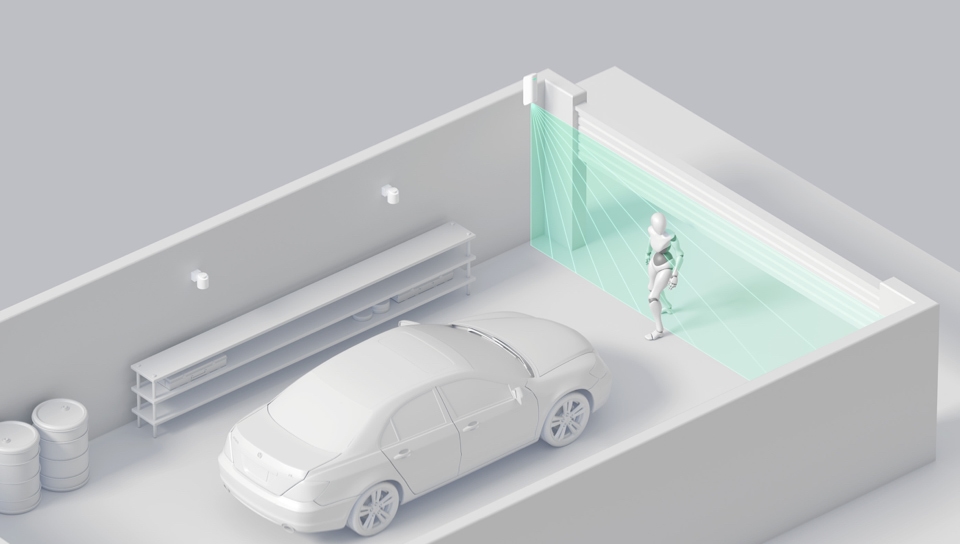

In a garage
Burglars won’t get through the garage door undetected when MotionProtect Curtain is in action. The curtain detector will continue to operate even if the temperature drops to -10°C.

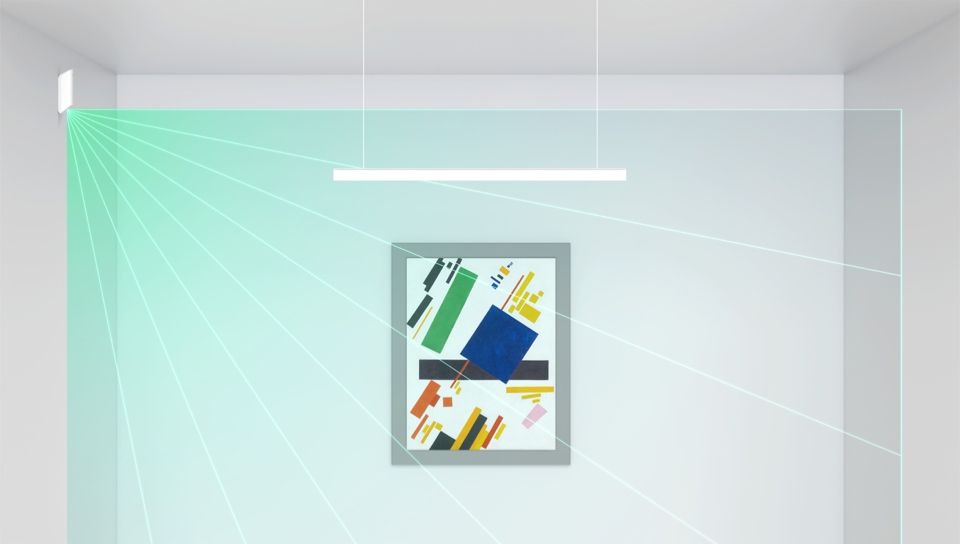

At a museum
The visitors can stroll the exhibits as they please. But if they cross the line and reach towards an artwork, an alarm will be raised.

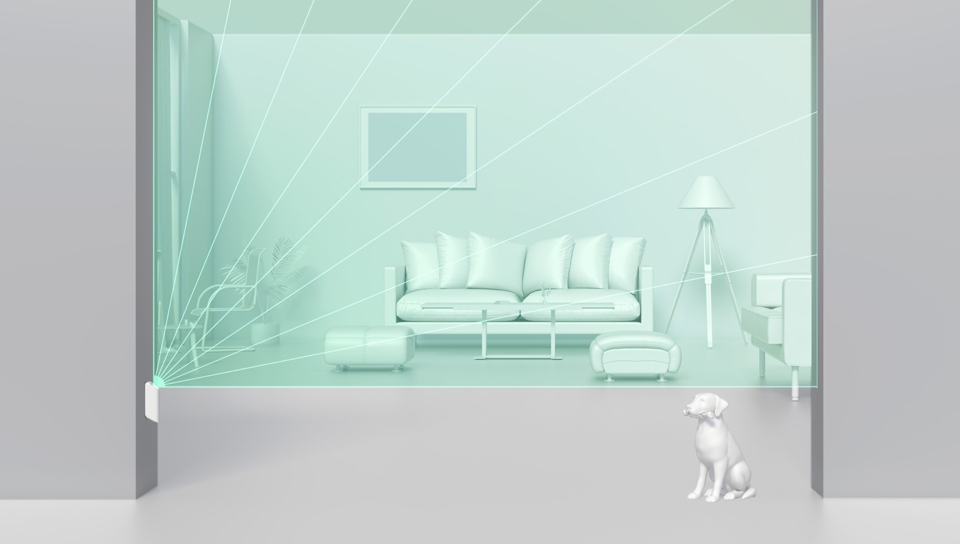

In a pet-friendly apartment
When installed correctly, MotionProtect Curtain keeps your private property safe and ignores the pets, even if they are Saint Bernards.
2-minute set-up
MotionProtect Curtain connects to the security system via Ajax app: scan the QR code, add the detector to the room, and proceed to installation.
Tech specs
| Classification | Radio-interlinked photoelectric security detector |
|---|---|
| Detector type | Wireless |
| Motion detection distance | From 6 to 15 meters (depending on the device settings) |
| Installation method | Indoors only |
| Compatibility | Operates with all Ajax hubs, and range extenders |
| Sensing element | Two PIR sensor |
| False alarm reduction | Available, Correlation Signal Processing |
| Alarm signal delivery time | 0.15 s |
| Detection angles | Horizontal — 6° Vertical — 90° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 m |
| Power supply | Battery: CR123A battery, 3 V |
| Battery life | Up to 3 years |
| Jeweller radio technology | Communication range with detectors — up to 1,700 m in an open space Two-way communication between devices Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Frequency hopping |
| Temperature sensor | Available |
| Operating temperature range | From -10°C to +40°C |
| Operating humidity | Up to 95% |
| Anti-sabotage | Protection against fraud Jamming notification Tamper-resistant |
| Remote configuration and testing | + |
| Protection class | IP54 |
| Dimensions | 134 × 44 × 34 mm |
| Weight | 92 g |
| Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |
| Complete set | MotionProtect Curtain motion detector SmartBracket mounting panel CR123A batteries (pre-installed) Bracket Installation kit User’s guide |
