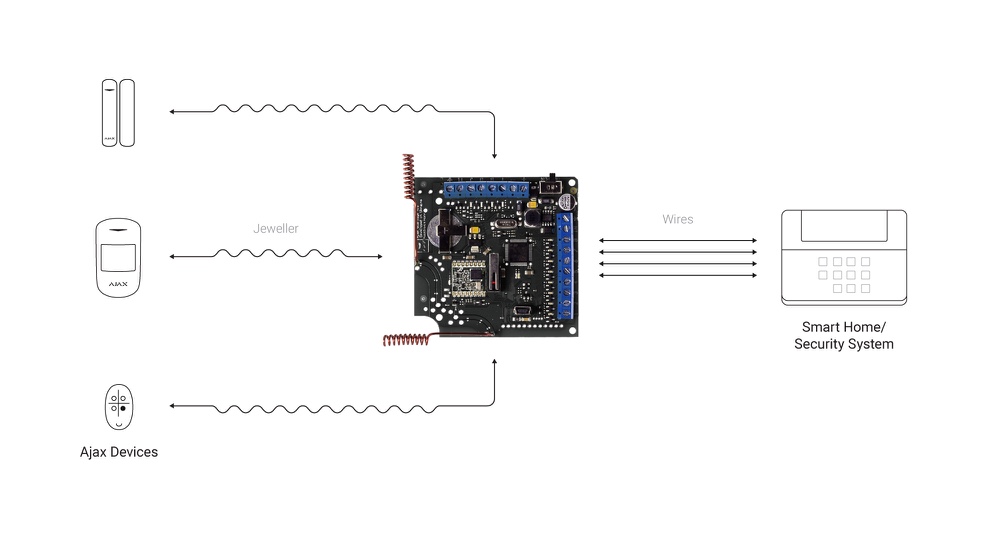

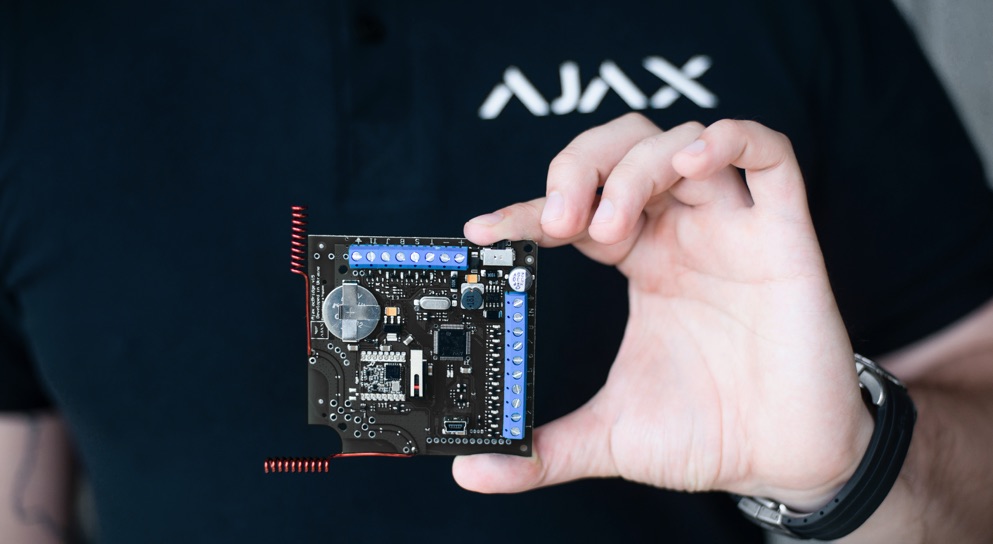

Principle of operation
When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm.
Feature
The device allows setting up the detector, performing radio communication tests and detection areas tests using PC.
Installation and set up
The device is installed in the body of the wired central unit, in sealed cases or plastic boxes.
Tech specs
| Classification | Receiver of wireless detectors |
|---|---|
| Installation method | Indoors |
| Compatibility | Wired and hybrid security systems |
| Number of security areas | 8 |
| Number of service areas | 4 |
| Loops | NO/NC, EOL, 2EOL |
| Maximum number of detectors | 99 |
| Supported devices |
MotionProtect MotionProtect Plus CombiProtect DoorProtect FireProtect FireProtect Plus LeaksProtect SpaceControl GlassProtect |
| Alarm signal delivery time | 0.15 s |
| Power supply voltage | 8 – 14 V DC miniUSB — 5 V (only for set up) |
| Jeweller radio technology | Communication range with detectors — up to 2,000 m in an open space Two-way communication with detectors Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Device polling period — 12 – 300 s |
| Capability of external antenna connection | Yes |
| Software update feature | Yes |
| Operating temperature range | From –10°С to +40°С |
| Permissible humidity | Up to 90% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper |
| Setting up and testing | Via configurator for PC |
| Current firmware version | 4.50.0 |
| Interface | miniUSB |
| Dimensions | 95 × 92 × 18 mm |
| Weight | 139 g |
| Warranty | Replacement and repair within 24 months of the date of sale. |
| Complete set | ocBridge Plus Installation kit User’s guide |
