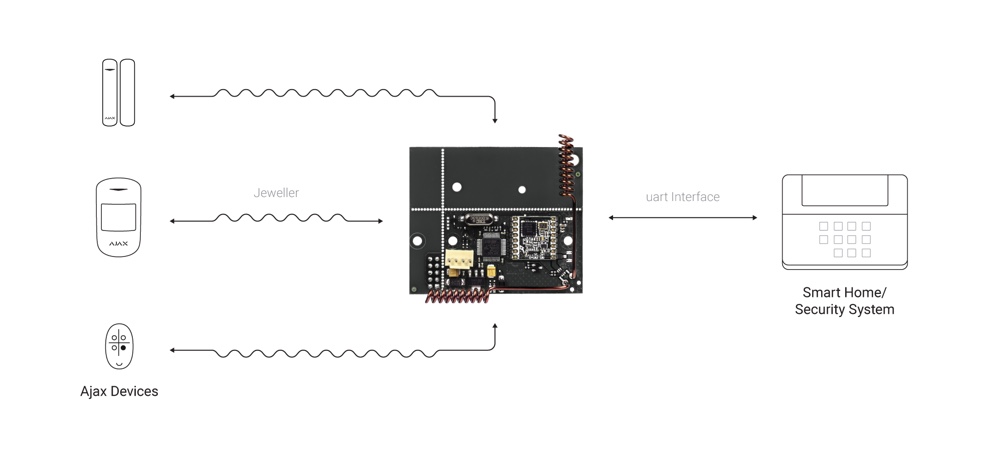

Principle of operation
When the detector activates, the device sends the information to the central unit, which raises an alarm.
Feature

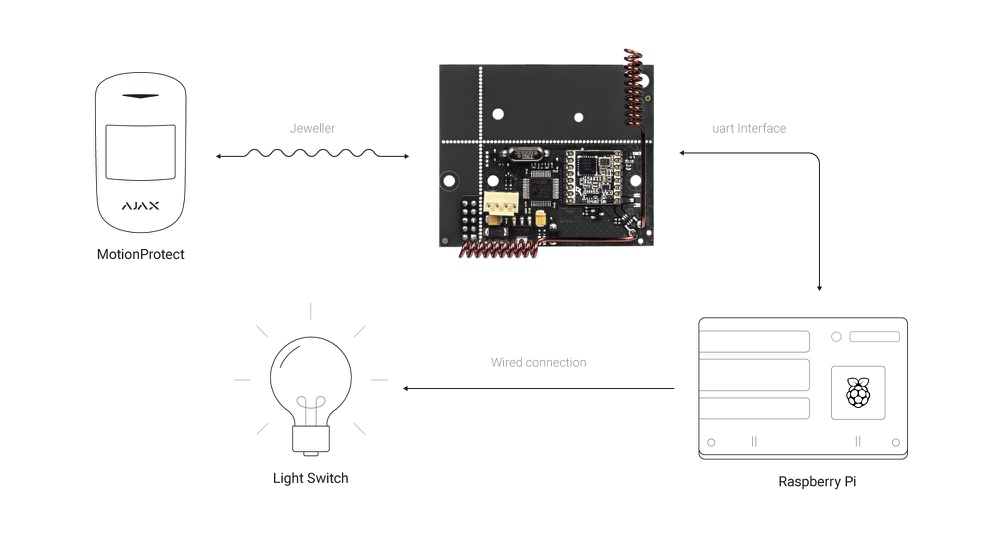

The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas.
Installation and set up
The device is installed into the body of the wired central units and hubs of smart home systems.
Tech specs
| Classification | Receiver of wireless detectors’ signal |
|---|---|
| Device type | Wireless |
| Installation method | Indoors |
| Compatibility | Wired security systems and smart home systems |
| Maximum number of detectors | 85 |
| Supported devices |
MotionProtect MotionProtect Plus CombiProtect DoorProtect FireProtect FireProtect Plus LeaksProtect SpaceControl GlassProtect |
| Alarm signal delivery time | 0.15 s |
| Power supply voltage | 5 V DC |
| Jeweller radio technology | Communication range with detectors — up to 2,000 m in an open space Two-way communication with detectors Operating frequencies — 866.0 – 866.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Device polling period — 12 – 300 s |
| Operating temperature range | From –10°С to +40°С |
| Operating temperature range | Up to 90% |
| Permissible humidity | Available |
| Anti-sabotage | Protection against fraud Jamming detection |
| Interface | UART |
| Dimensions | 64 × 55 × 13 mm |
| Weight | 32 g |
| Warranty | Replacement and repair within 24 months of the date of sale. |
| Complete set | uartBridge |
